Disc Stack Separators

Disc Stack Separators

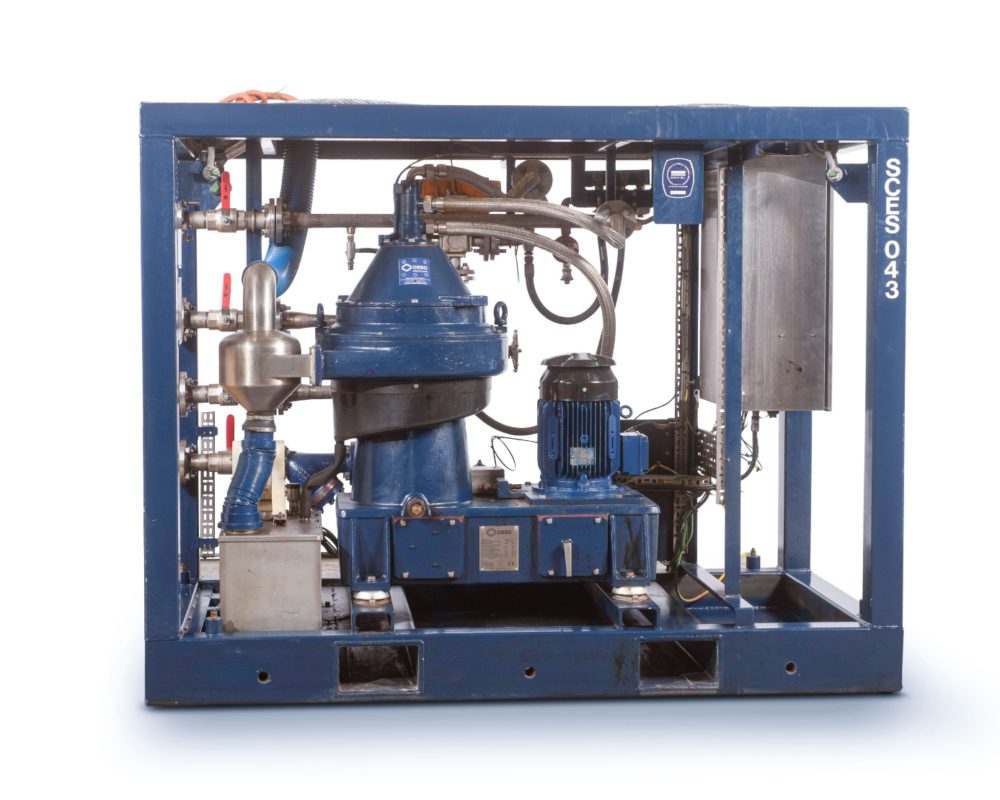

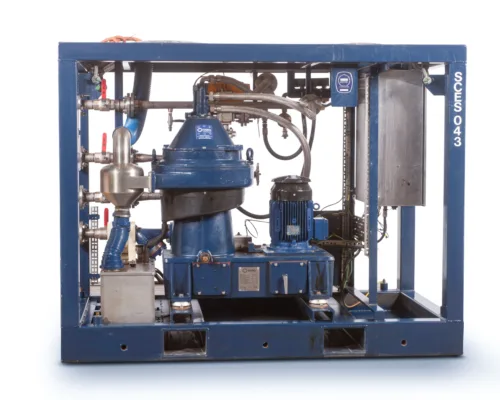

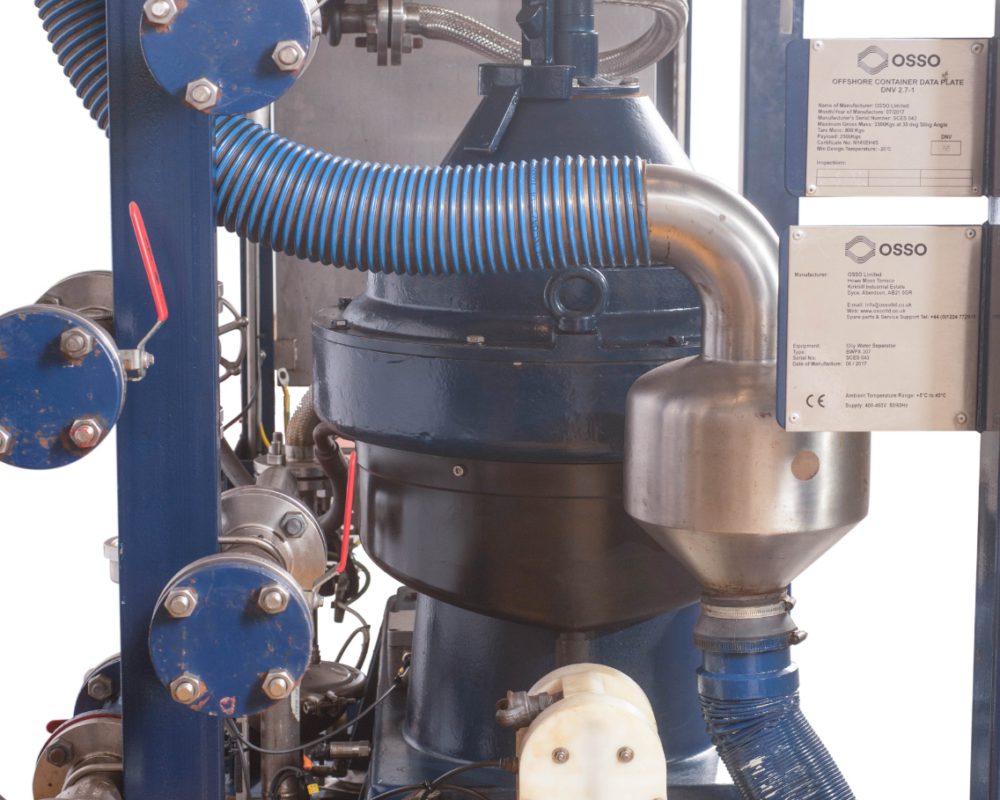

Disc Stack Separators help maximise efficiency and protect your products from contamination and deterioration.

Our modules are designed and built in DNV frames and with offshore use in mind our equipment ranges from Atex Zone 1 and NORSOK approved.

Reliable &
Cost-Effective

Using a disc stack separator as your fluid cleaning process is a reliable, cost effective solution that can handle a solid loading of up to 4% in the feedstock, and will remove particle size of up to 0.5 Micron — a proven technology across a number of different industries including oil & gas, marine and food & beverage.

OSSO's comprehensive fleet of mechanical separators are deployed to clients worldwide and comply globally with international standards. Rental options include Zone 1, Zone 2 and safe area rated separators with flow capacity ranging from 900 litres/hr up to 14400 litres/ hr.

Applications

OSSO's extensive fleet is suitable for cleaning:

  • Water
  • Hydraulic oils
  • Fuel
  • Lube oils

Benefits

  • Low maintenance requirement
  • Highly efficient and reliable
  • No additional waste streams
  • Can offer reduction in consumable costs / staff operating costs

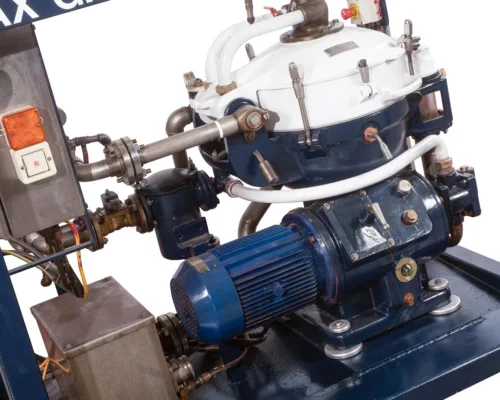

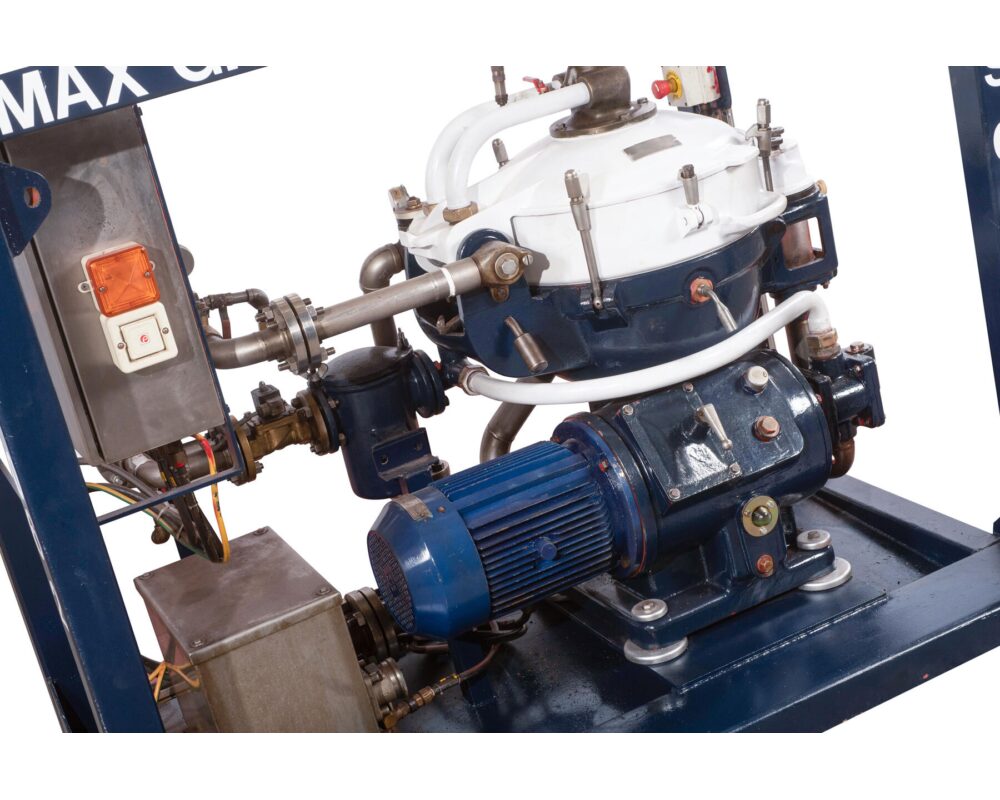

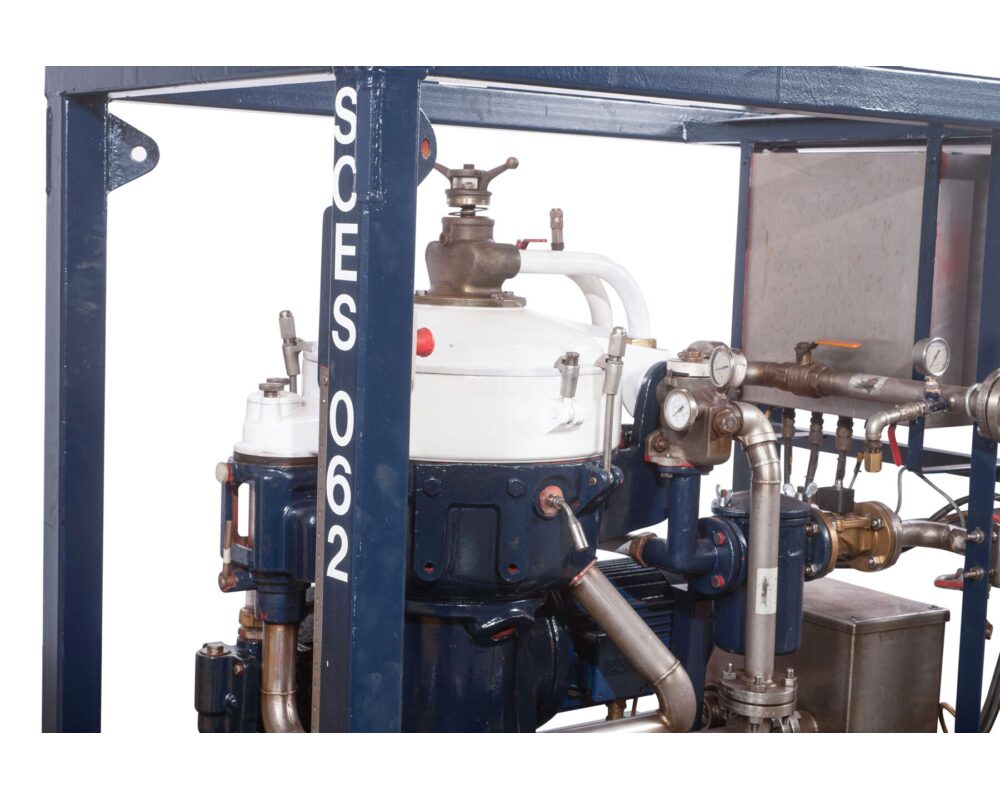

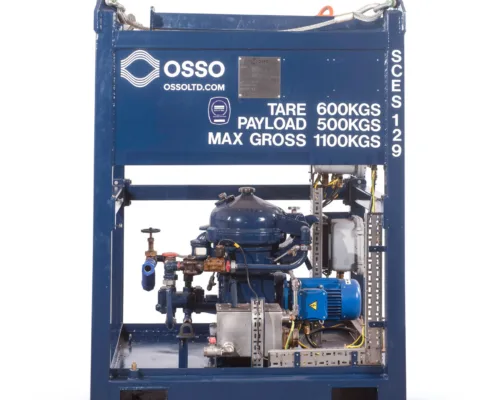

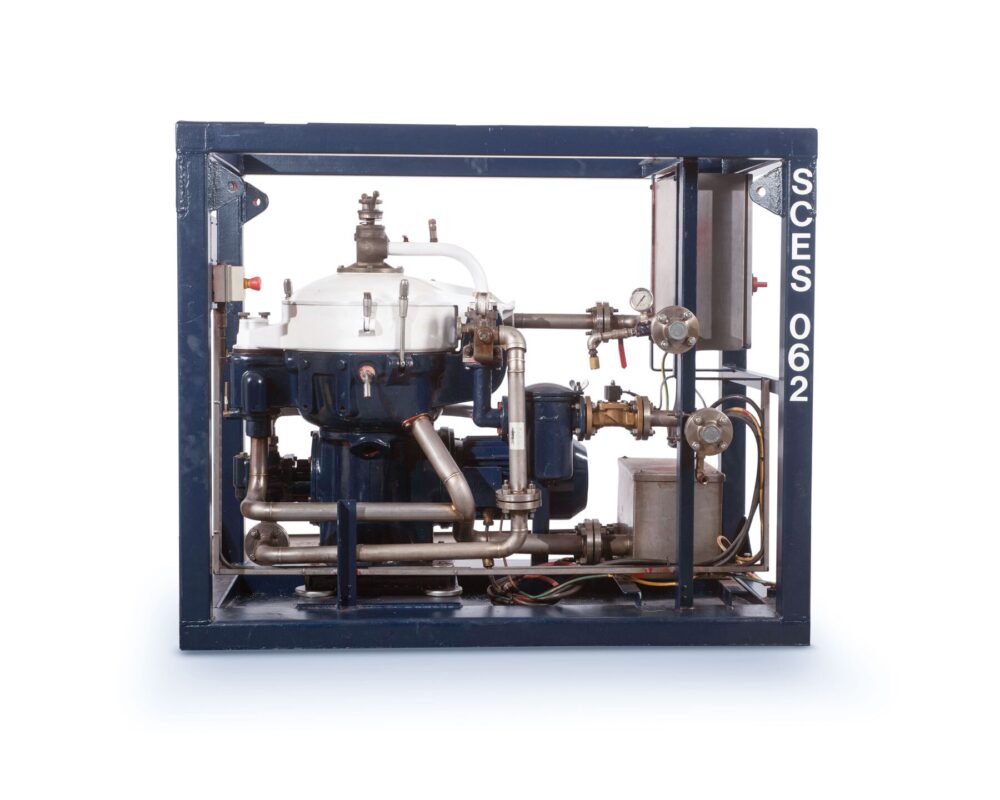

High Speed Oil Separators

Our comprehensive fleet of mechanical separators are deployed worldwide and comply globally with international standards. Our range includes Zone 1, Zone 2 and safe area rated separators with flow capacity ranging from 900 litres/hr. up to 14400 litres/ hr.

ModelDimension 1Dimension 2Dimension 3WeightCapacityPowerExdSafe Area
HSOS 900900-1250mm900-1500mm800- 2500mm400-3000kg Up to 900 l/hr 0.75kW 3ph x 415/440v 50/60HApprovedApproved
HSOS 15001200mm1360mm960-1250mm650-1250kg Up to 1500 l/hr 2.2kW 3 x 415/440v 50/60zApprovedApproved
HSOS 62001430mm1470mm3950mm1145kg Up to 6200 l/hr 7.5kW 3 x 415/440v 50/60Hz-Approved
HSOS 84001000mm1700mm1400mm1500kgUp to 8400 l/hr7.5kW 3ph 415/440v 50/60Hz-Approved
HSOS 144001800mm1800mm3000mm5000kgUp to 14,400 l/hr 18.5kW 3ph 415/440v 50/60HzApprovedApproved

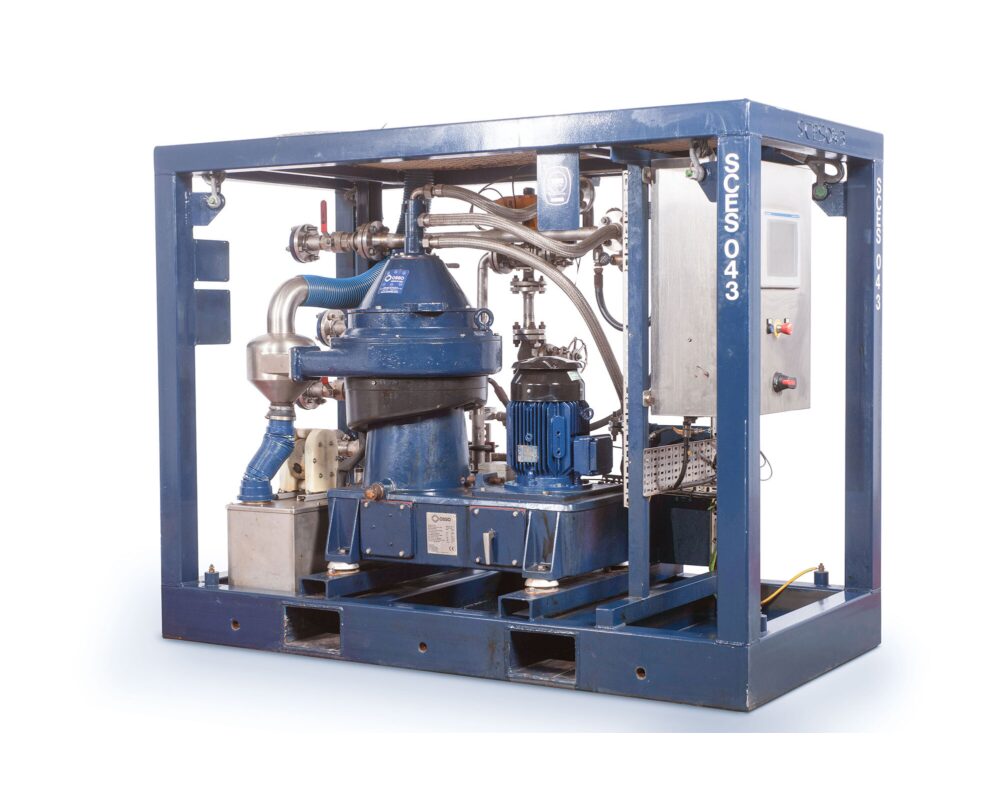

High Speed Water Separators

Mechanical separation and the use of disc stack separators for cleaning contaminated fluids is a proven technology across a number of different industries including Oil & Gas, marine and food & beverage

ModelDimension 1Dimension 2Dimension 3WeightCapacityPowerExdSafe Area
HSWS 50002270mm1760mm1170mm2900kg Up to 10500 l/hr 7.5kW 3 x 400 / 460v 50/60Hz -Approved
HSWS 144001800mm1800mm3000mm5000kg Up to 14400 l/hr 18.5kW 3ph x 415/440v 50/60Hz ApprovedApproved
